Swinging Door System
Commercial 95 340
Door assistant for swing doors in the Contur design.
The PORTEO offers an innovative and convenient way to open and close doors effortlessly. With all the elegance of the DORMA Contur design, the PORTEO is specifically suited to interior doors, performing all the functions needed to make life just that little bit easier for all. The PORTEO offers an innovative and convenient way to open and close doors effortlessly. High-quality DORMA technology makes the PORTEO particularly easy to operate – with minimum noise, high functional reliability and excellent application adaptability. The PORTEO is an integrated solution that comes in a complete package with slide channel and mounting backplate. It offers outstanding convenience and safety plus fast and easy installation, thanks to its impeccable “plug & go” credentials.
• Door assistant for swing doors
• Effortless opening and closing
• Compact dimensions
• Pull and push side, transom-fixed or leaf-fixed
• Easy installation - “plug & go” delivery
Swing door operator in modular design for doors with a maximum width of 1600 mm and a weight of up to 400 kg.
ED 100 - Door weights up to 160kg, door widths up to 1100mm
ED 250 - Door weights up to 400kg, door widths up to 1600mm
Variable Functional Range
Tested to 1,000,000 cycles, the ED 100/250 is a robust yet elegant electromechanical swing door operator for various fields of application. The 'Wind Load Control' function is ideal for windy sites compensating for heavy wind loads. Suitable for emergency escape routes as well as use on fire and smoke check doors. Apart from the extended cover, dormakaba also provides an easy-to-install integrated door coordinator for double-leaf doors. With the aid of the dormakaba Upgrade Card, the system’s functional range may be adapted to various door versions. The large scope of integrated functions further ensures that the majority of possible applications can be readily accommodated.
Door Closer mode & Automatic mode
Users may choose between two operating modes: Door Closer and Automatic mode. While set to the Door Closer mode, the ED 100 / ED 250 swing door operator is optimized for manual operation. With its optional Power Assist function, the Door Closer mode is tailored to predominantly manually operated doors where a door closer function is desired. The Automatic mode in turn is especially suitable for mainly automatic access with motion detector or pushbutton actuation.
Wind Load Control
The ED 100 / ED 250 swing door operator is especially suitable for exterior doors that are subjected to varying wind loads and for interior doors separating rooms where different air pressures prevail. While the system is in Automatic mode, the wind load control monitors the actuation speed, keeping it constant at the preset value.

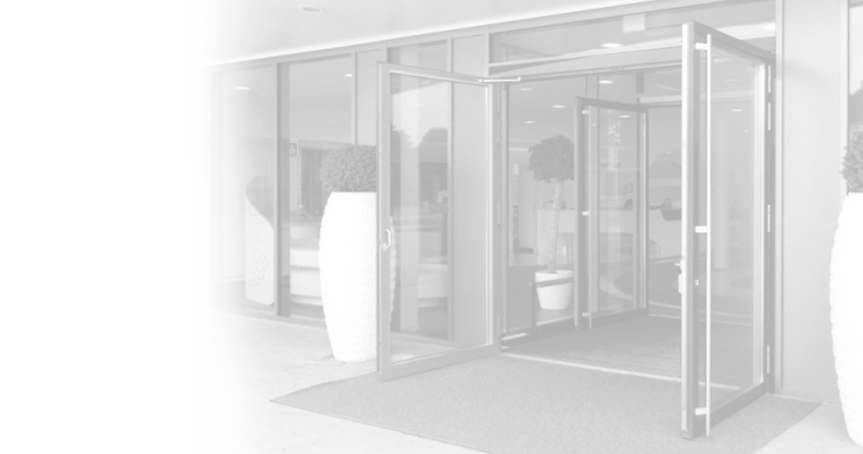

Automatic Swinging Doors
Made to measure configurations for various door applications.
Swinging Door System
Benefits of Porteo System
Benefits of ED 100/250 System
• Modular design and variable functional range
• Automatic operation with "Wind Load Control"
• Suitable for use on emergency escape and fire doors
• Tested to 1,000,000 cycles
• For single- and double-leaf swing doors
With swing door operators SHADES offers an electromechanical swing door operator for various fields of application. The operator may be installed as a push version with standard arm assembly and as a pull version with slide channel.
Modular Swing Door Operators
