Garage Doors

Overhead Door Detolux

The walls of your garage are kept completely free – for your needs

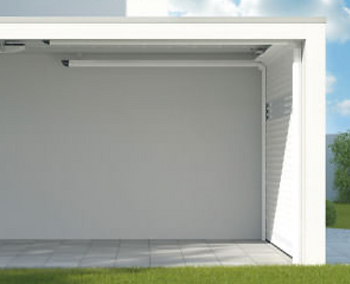

Detolux is the quiet aluminium overhead door for garages with low ceilings and for various roof pitches. Thanks to our silent-running system (LLS), it glides smoothly along the ceiling on rollers. It fits roof pitches of up to 10% without any problems. It doesn’t take up any space on the garage walls and only needs 8 cm in the lintel area. This gives you more scope when planning new buildings, too.

Shading System

Commercial Heavy 430

Resident leaves the walls and ceiling of your garage free, ensuring maximum space gain.

Resident is the ultimate space-saver of garage doors. The aluminium roller door leaves the walls and ceiling of your garage free, ensuring maximum space gain. When it opens, the door curtain is parked in the enclosed aluminium box – protected from dirt, dust and damage. The premium garage door provides you with extensive options to customise the features in it.

Benefits of Roll-Up Resident System

• Durable solid-aluminium garage door

• No swinging outwards, more space in front of the garage

• Manufactured to the required dimensions, accurate to within a millimetre

• Door curtain with individual slats

• At least 25 cm of space required in the lintel area

• Opening width of up to 540 cm

Garage Door

Sliding Gate Vertico

Vertico is the adaptable of the garage door options – suitable for virtually any structural conditions.

Vertico is the adaptable aluminium garage door with ultimate flexibility of use. It adjusts to virtually any structural conditions and even copes with very large garages with a double-door design. As a single lateral-running door, it only takes up one garage wall. The garage ceiling and the other walls are left free. The two programmable openings (door and gate effect) allow you to open your garage door only halfway if you wish, for example, by radio control.

Garage Doors
Systems

Aluminium garage doors: convenient and durable space-saving miracles. Our garage doors don't swing outwards, are made of premium-quality aluminium and give you gain space both inside and in front of your garage.

Revolving
Doors

Whether you have sporty low ceilings or wide garage doorways, our systems are easy to operate.

Products Range

No Outward

Swing

Motor

Drive

Safety

Brake

Emergency

Unlocking

Available
Systems

Garage Doors

Roll Up Resident

Benefits of Overhead Door Detolux System

• Radio-remote control

• Obstacle-detection sensors

• Motor with anti-opening lock

• Silent-running system (LLS)

• Anti-drop device on both sides

• Ventilation profile

• Integrated internal garage lighting

• Aluminium bottom slat

Benefits of Sliding Gage Vertico System

• Radio-remote control

• Obstacle-detection sensors

• Motor with anti-opening lock

• Silent-running system (LLS)

• Two programmable opening widths (door and gate effect)

• Integrated internal garage lighting

• Soft-closing for silent, gentle running of the door

• Bottom slat with 22-mm tubular gasket

Garage Doors

Prince Gate

Operator for swing gates with each leaf up to 3 m long and weighing up to 250 kg

Prince with our control boards detects when the gate impact against an obstacle, and reverses the movement. It endowed with pedestrian opening command and a photocells auto test as required. The allows slow-down of the leaf in approaching to the final position, giving the movement a greater impression of safety and fluidity. Prince Gate , with the optional buffer batteries, means that black-outs will pass totally unnoticed. It is possible to do up to 90 cycles during the black out period. PRINCE 24V can also work without batteries. The operator is endowed with bronze trolley, adjustable bracket and mechanical stopper for opening position

Garage Door

King Evo

Irreversible operator for swing gates with each leaf up to 4 m long and weighing up to 400 kg

King Evo operators are available in various versions, for easy and functional use anywhere, from detached dwellings or apartment blocks to large company premises. It is made and designed to operate silently and to provide long-term durability. The mechanics, with components lubricated using special synthetic grease, with the Ø20mm large 4-thread endless screw, have been designed to guarantee maximum silence, strength and reliability. Thanks to these special characteristics, King Evo units can even be fitted on gates of big size.

KING EVO 24V, with the optional buffer batteries, means that black-outs will pass totally unnoticed. It is possible to do up to 40 cycles during the black out period. KING EVO 24V can also work without batteries. Thanks to its over dimensioned mechanics and its 24 V motor, it is ideal for using on gates that undergo heavy duty usage (opening/closing frequently) such as apartment buildings. All the versions have a standard supply mechanical limit switch when opening.

Garage Doors

Idro Gate

Hydraulic operator fo swing gates with each leaf up to 7 m long and weighing up to 1000kg

The compact IDRO series of hydraulic actuators is specially designed for the automatic operation of public condominium swing gates

The IDRO is specially suited to heavy-duty applications, particularly those requiring constant opening and closing operations, and therefore high-resistant hydraulic pistons

The force exerted by IDRO during operation can be adjusted by means of special valves

The Dimensioning of both internal and extern per mechanical components has been designed to endure years of heavy-duty work

Garage Door

Sliding Gate K400

Irreversible operator for sliding gates weighing up 400 kg

K400 is the new RIB operator for sliding gates weighing up to 400 Kg. The speed can be adjusted from 9 to 20 m/min. K400 is equipped with built-in heater with temperature sensor. The base plate provided allows height adjustment and fixing to the ground with expansion screws or through cementation of its parts. Release with customized key. Adjustable deceleration when approaching opening and closure.

The manual release is fitted with a switch that commands the automatic repositioning of the gate in slow speed mode when normal functions are restored.

Garage Doors

Sliding Gate K500

Irreversible operator for residential sliding gates weighing up 500 kg

The included fixing plate allows the adjustment in height and the fixing on the ground with expansion screws or by cementating of its attachments. K500 can be fitted on the same base plate of our old K5. Release lock with personalized key or allen key. Driving gear in syntherized steel. Adjustable low speed in approaching, in opening and closing phase. Pedestrian opening command, Safety strip auto test, and self-heated motor for prompt start at low temperature

Garage Door

Sliding Gate Super 2200

Irreversible operator for industrial sliding gates weighing up 2.200 kg

SUPER 2200 is equipped with S1-CRX control boards built inside, without radio receiver, with gradual start, electronic adjustment of the force, soft-stop in approaching and electronic brake.

SUPER 2200 are heavy-duty units, a fan-cooled electric motor, a reducer with mechanical components in an oil bath and an high-precision limit switch system for gates up to 10,5 m (SUPER 2200 FCE). In 45 years of history, SUPER has been modified only in few parts and remains today one of the most reknown RIB products.
